Mô tả chi tiết

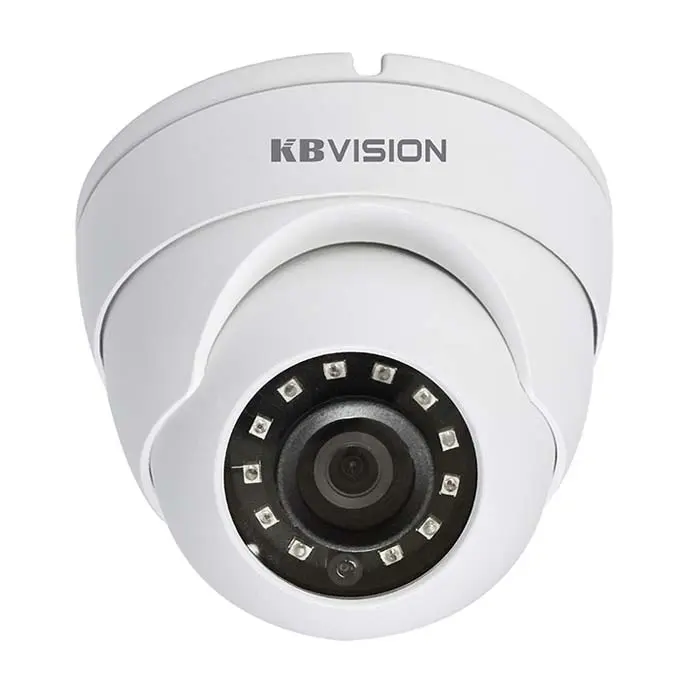

Model | KX-A2012TN3 |
Camera | |
Image Sensor | 1/2.9 inch 2Megapixel Panasonic CMOS |
Effective Pixels | 1920 (H) × 1080 (V) |
Electronic shutter speed | Auto/Manual 1/3s ~ 1/100000s |
Minimum Illumination | 0.08Lux/F2.0 (Color, 1/3s, 30IRE) 0.3Lux/F2.0 (Color, 1/30s, 30IRE) 0Lux/F2.0 (IR on) |
IR Distance | Up to 30m |
IR On/Off Control | Auto/ Manual |
IR LEDs | 12 |
Pan/Tilt Range | Pan: 0° ~360°; Tilt:0° ~90°; Rotation: 0° ~360° |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 3.6 mm |
Max. Aperture | F2.0 |
Angle of View | H: 104°/92°, V: 55°/50° |
Focus Control | Fixed |
Video | |
Compression | H.265+; H.264+ |
Streaming Capability | 2 Streams |
Day/Night | Auto (ICR) / Color / B/W |
BLC | BLC / HLC / DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detetion | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off/ On |
Privacy Masking | Off/ On (4 Area, Rectangle) |
Network | |
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x; Multicast; ICMP; IGMP; TLS |
Max. User Access | 20 |
Edge Storage | NAS Local PC for instant recording |
Ethernet | RJ-45 (10/100Base-T) |
Interoperability | ONVIF Profile S&G, API |
General | |
Power Supply | DC12V, PoE (802.3af)(Class 0) |
Power Consumption | <5.5W |
Operating Temperature | -30°C ~ +60°C |
Ingress Protection | IP67 |
Casing | Metal + plastic |
Dimensions | Φ108×84.9mm |
Weight | 0.23kg |
