Mô tả chi tiết

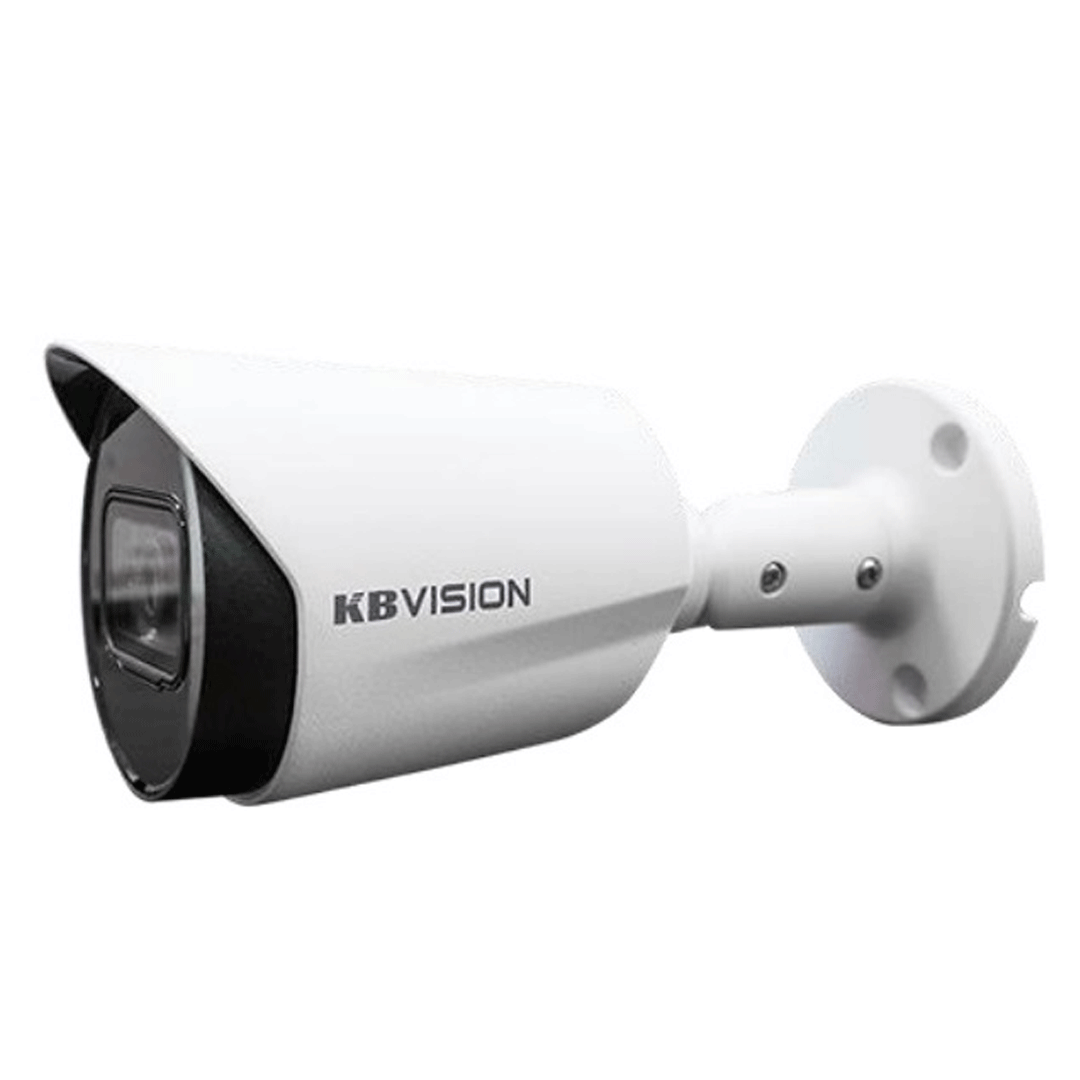

| Model | KX-CF2101S |
| Camera | |
| Image Sensor | 1/2.8 inch 2.16 MegaPixels CMOS |
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
| Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on |
| S/N Ratio | More than 65dB |
| Fill Light On/Off Control | Up to 20m |
| IR On/Off Control | Auto / Manual |
| Fill Light Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max Aperture | F1.6 |
| Iris Type | Fixed iris |
| Video | |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704×576/704×480) |
| BLC | BLC/HLC/WDR |
| WDR | DWDR |
| White Balance | Auto; Manual |
| Gain Control | Auto; Manual |
| Noise Reduction | 2DNR |
| Smart Light | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 16x |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 area, rectangle) |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | 12V±30% DC |
| Power Consumption | Max 3W (12V DC, white light on) |
| Ingress Protection | IP67 |
| Dimensions | 174.5 x 70.6 x 72.3 mm |
| Weight | 0.34kg |
